Make – MR CHEMIE

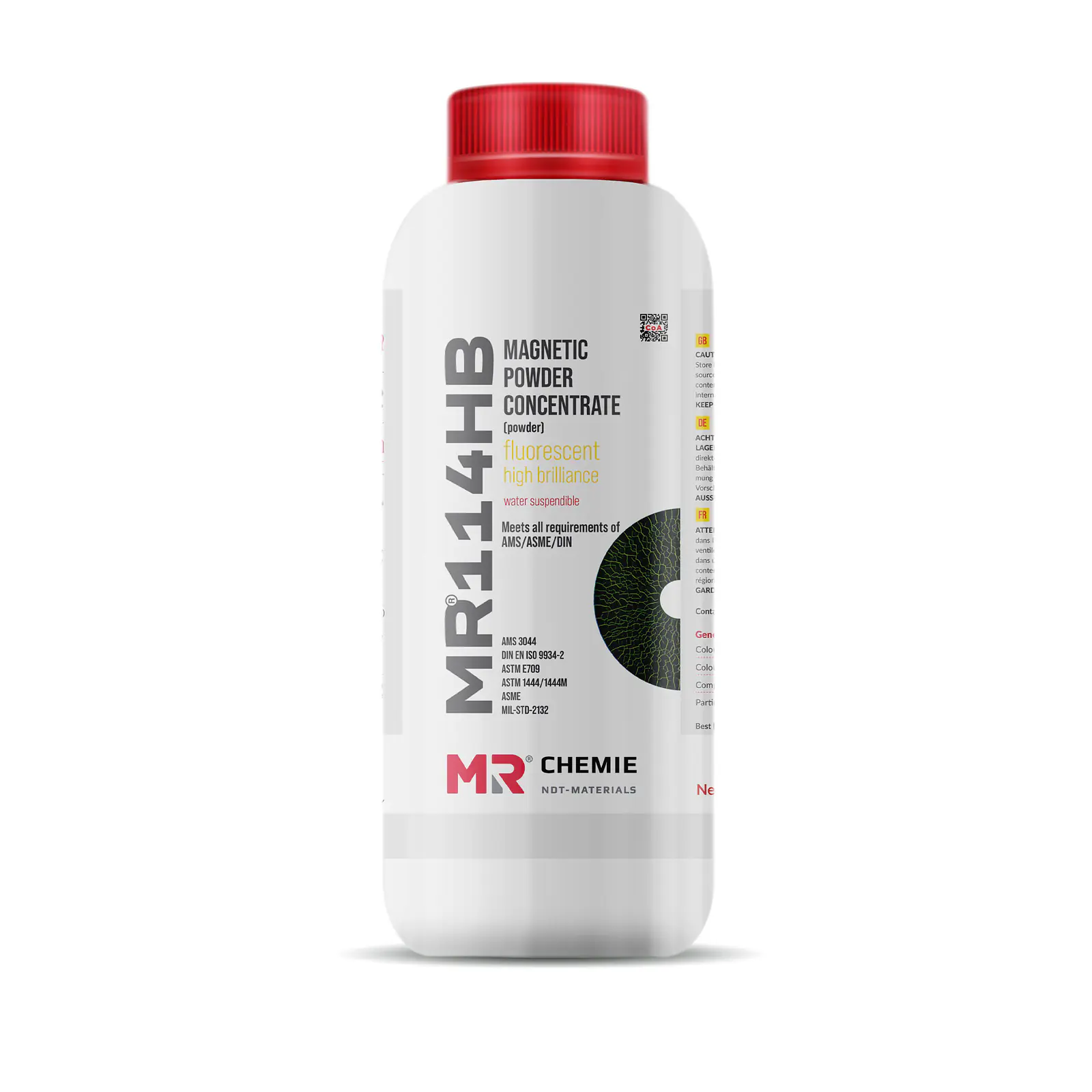

MR®114HB is an ultra-bright fluorescent green-yellow (under UV), dry green, highly sensitive ferromagnetic powder designed to be used in water which is used for Magnetic Particle Testing (MPT). MR114HB particles is pre-mixed with water conditioner – including corrosion inhibitor, anti-foam and wetting agent; manufactured for an optimum sensitivity, excellent discontinuity definition, brightness with minimal to nil background and magnetic characteristics for wet method fluorescent MPT.

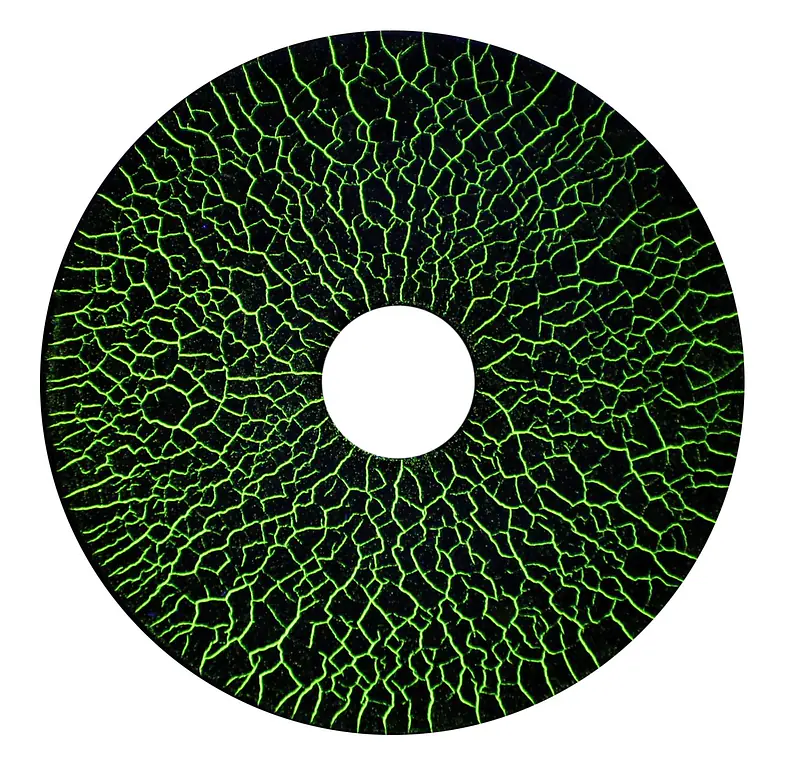

It detects medium to fine surface and slightly sub surface discontinuities such as cracks, inclusions, seams, tears, laps, flakes and other welding defects.

Colour in UV light – fluorescent green-yellow

APPROVALS:

ASME Code V, Art. 7
DIN ISO 9934 (BS 5044)
ASTM E 709
RCC-M
PMUC (EDF)
AMS 2641
AMS 3041
AMS 3043
ASTM E1444/1444M

FEATURES:

• Brilliant, clear green-yellow indications under UV light
• Ultra-high brilliance
• High sensitivity
• Minimal to no background
• Optimal settling
• No odour
• Quick indications
• Long bath life

• Brochure
