Discover the versatility and efficiency of Magnafield's MPI Yoke, designed for flaw detection on both open surfaces and subsurface areas. With the option of AC for surface inspection and HWDC for deeper flaw detection, this tool offers articulated legs to adapt to various component contours. Its adjustable interpole distance of up to 12" (300mm) ensures comprehensive coverage, making it an ideal choice for your magnetic particle inspection needs.

Product Features:

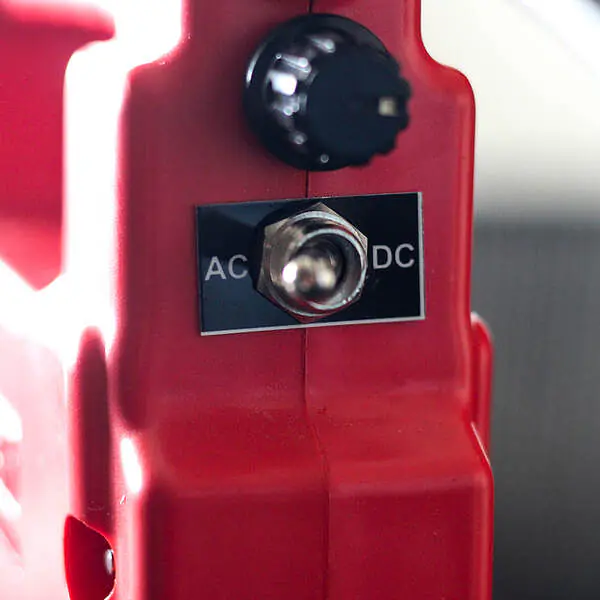

• AC/DC Yoke for flexible surface and subsurface flaw detection
• Weigh Less than 3 kg

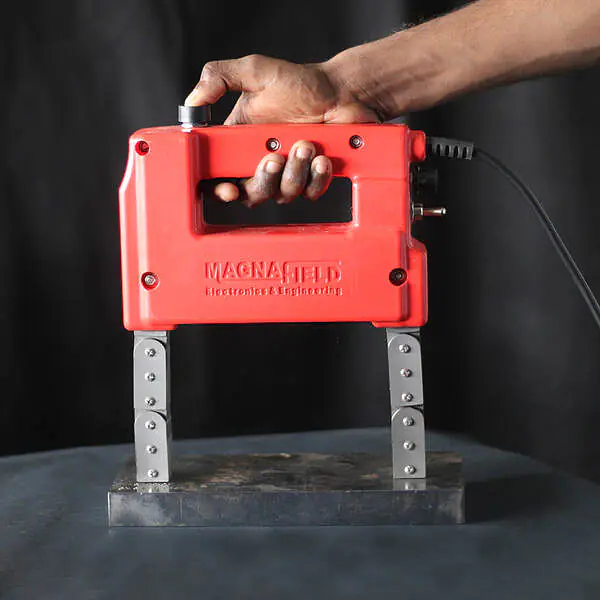

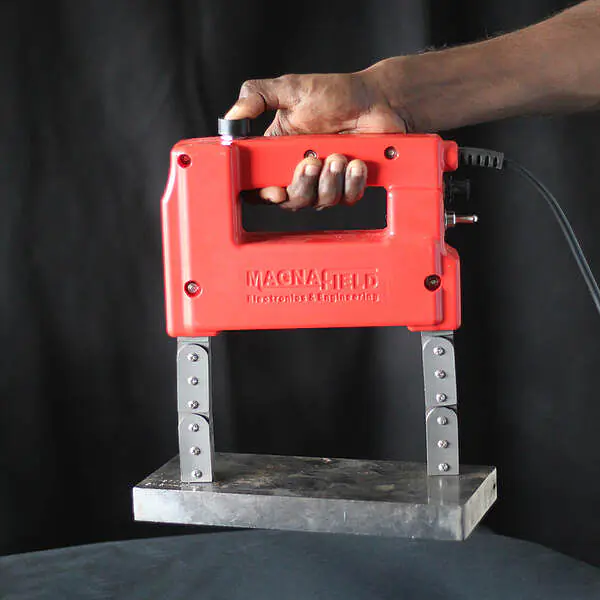

• Capable of lifting 4.5kg in AC mode and 22.5kg in DC mode
• Strong and Ruged Body
• Handy & light weight, safe for operators.
• Ensures safety with no risk of sparking or hot spots during operation
• Portable equipment for magnetic particle inspection

Specifications:

• Lifting Capacity :22.5 kg in HWDC & 4.5 kg in AC.
• Yoke Weight – Less than 3kgs

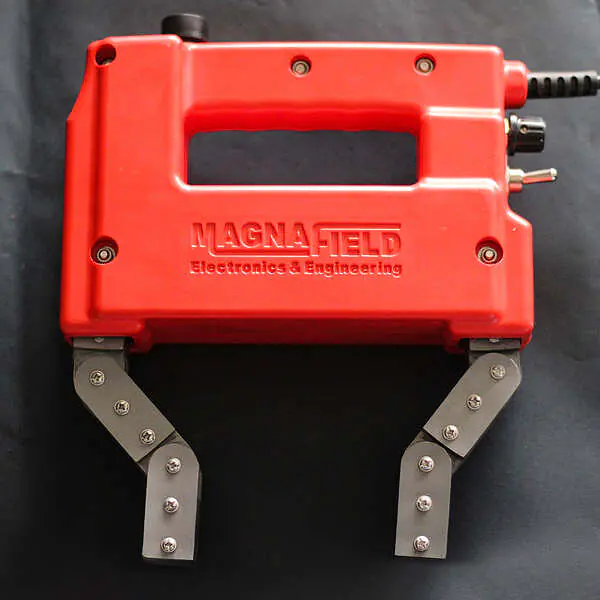

• Articulated Legs – Interpole Distance Adjustable up to 12” (300mm)
• Duty Cycle – 2 mins
• Current Input – 220V Single Phase, Current Drawn 2 Amps

We provide NABL traceable test & calibration certificates.
