DESCRIPTION

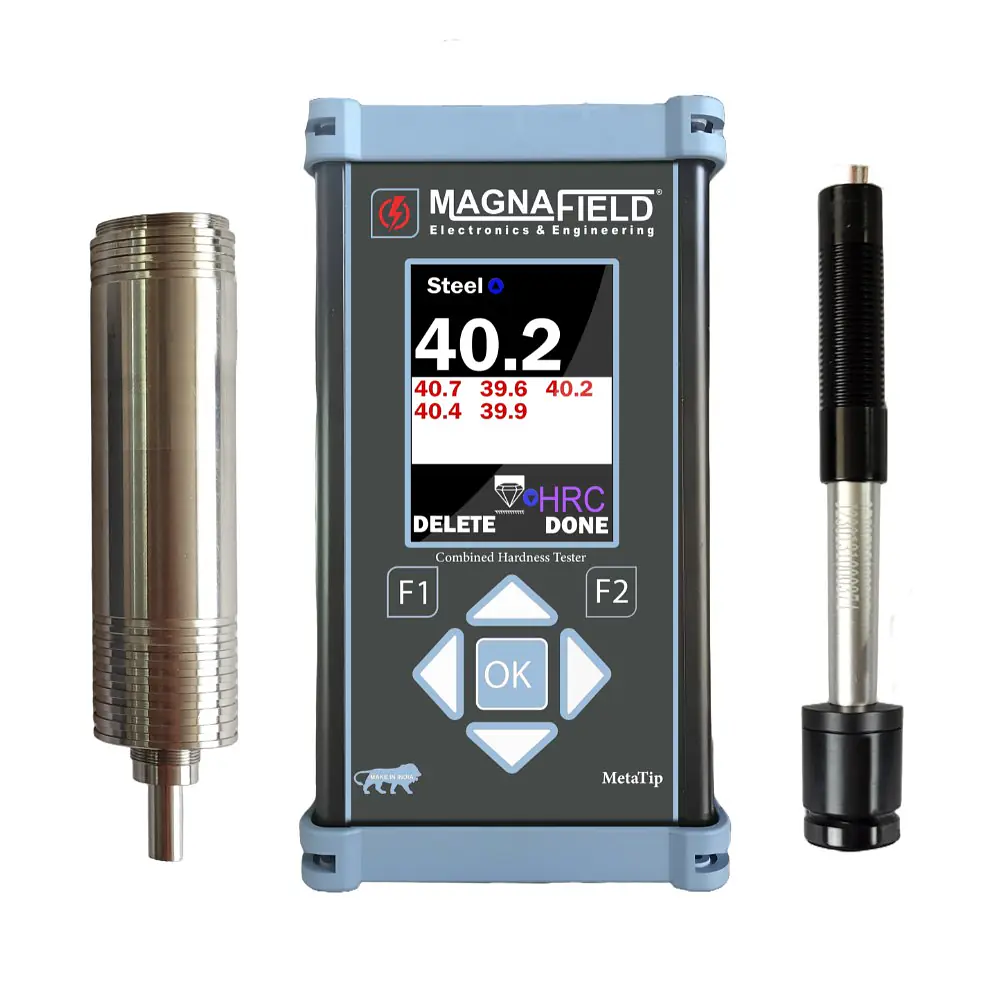

Introducing our Combined Hardness Tester, a versatile and advanced solution for accurate hardness measurements across various materials. This innovative instrument combines multiple hardness testing methods, providing comprehensive results for improved efficiency and convenience in material analysis.
Product Features:
- Large TFT color display
- In UCI mode it can measures HV, HRC, HB & HRB AND
- In Leeb mode it can measures HL, HRC, HV, HB, HRB & MPa
- No angle restrictions, even upside down
- Displays average values
- Stores up to 150 sets of data
- Complies with ASTM A1038 & ASTM A956 standards
- Convenient & user-friendly operation
- In UCI 1 Kgf (10N), 5 Kgf (50N), 10 Kgf (100N) & Elongated Probe & In Leeb D,DC, G, D+15, DL, C & E Probe for various applications
- Wide measuring range for comprehensive hardness analysis
- Battery low indication
- Standard In-Built Rechargeable Battery
- USB Charging
- 6 hours of battery backup
- PC Connectivity
We provide NABL traceable test & calibration certificates.
Brochure
SPECIFICATIONS
MetaTip
Approx 400 (Without probe)
150x90x30
Temperature: 10°C- 50°C; Humidity:30%”80% R.H
Approx 6 hours (rechargeable)
3-4 Hours
Rechargeable Inbuilt Batteries
ASTM A956 for Leeb and ASTM A1038 for UCI
Within +/- 6HLD for Leeb method & Within +/- 3% for HV and HB for UCI method Within +/- 1.5 for HRC and HRB for UCI method
Any Direction 360°
HL, HRC, HB, HV, HRB, MPa for Leeb method & HRC,HB,HV,HRB for UCI method
HLD: 190-999 ; HRC: 15.0-80.0 for Leeb method and HV: 100-999; HRC: 15.0-80.0 ; HB: 100-999 ; HRB: 70-120 for UCI method
